clinPAL Series Automation That Has Your Back
- Efficiency - achieve optimal laboratory utilization.
- Productivity - eliminate manual preparation steps and save valuable time, space and money.
- Accuracy - obtain highly accurate results thanks to optimal and reproducible sample preparation.
- Quality - avoid contamination thanks to a metal-free flow path and sample vessels remaining closed at all times.
clinPAL stands for long-term, cost-effective and space-saving workflow automation. This unique solution enables a fully automated recognition, homogenization, dilution and introduction of clinical samples for ICP-MS analysis. Handle both high sample throughput and small volumes reliably and efficiently.
The Next Level of Workflow Automation
clinPAL impresses with a variety of innovative features for high sample throughput using small sample volumes:
- Reproducible preparation - integrated vortex module for optimal sample homogenization
- Automatic sample recognition - integrated barcode reader for avoiding mix-ups of samples
- Direct vial implementation - utilize conventional blood collection tubes
- Scalability - select the rack capacity that matches your sample throughput
- Contamination-free - avoid contamination thanks to unique coating technology and septum piercing
- One software - full integration in AspectMS software
- Fast injection - rapid sample introduction system
Brochures
| Title | Language | Info |
|---|---|---|
| clinPAL für ICP-MS (DE) | de | PDF, 3 MB |
| clinPAL for ICP-MS (EN) | en | PDF, 3 MB |
Perfect Combination: clinPAL and ICP-MS Redefine Analysis of Clinical Samples
ICP-MS is one of the most powerful techniques in elemental analysis. But these highly sensitive instruments are equipped with rather simple sample handling solutions. We believe that this technique deserves a strong partner - a real PAL!
With clinPAL, Analytik Jena is introducing the first fully automated sample handling solution for measuring clinical samples with ICP-MS under full control. It is designed to suit the typical laboratory workflow to measure human body fluids like plasma, urine, serum and whole blood.

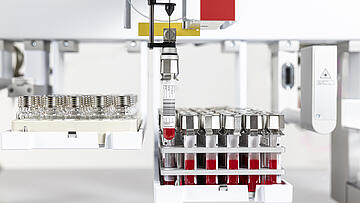

The heart piece of clinPAL is a laterally movable module that carries a height adjustable needle and a magnet. The needle is covered with a special coating to enable septum piercing of typically used vials in the clinical laboratory environment and yet prevent any cross contamination. The magnet is used to transport the vials to the barcode reader and vortexing module.
As the vial passes through the barcode reader the information is transferred to ASpectMS, the software of the PlasmaQuant MS, and inserted in the respective slot of the measurement sequence.
Both the undiluted and the diluted sample are shaked on the vortexer to enable an optimal homogenization. The prepared sample is inserted into the PlasmaQuant MS via a switching valve. The injection triggers the measurement in the ASpectMS software.
The rack capacity of clinPAL can be modified to suit your individual sample throughput requirements. Also there is no need to transfer the sample to an intermediate vial before placing it on the device. clinPAL can easily handle commonly used vessels like vacutainers or monovettes as primary vials. For diluting the sample we offer several vial sizes; again depending on your individual needs.
Use your valuable time and lab space for other challenging tasks and questions and no longer for sample preparation. Choose Analytik Jena's clinPAL to lift your clinical elemental analysis to the next level and adress the analytical, regulatory and economical challenges and be prepared for the future.
Products
clinPAL 1200 - Automated Sample Handling and Preparation System
The clinPAL 1200 is equipped with 4 rackholders to bear up to 12 racks. It provides automated sample handling and preparation of up to 192 samples in one run.
Order number: 810-88538-0
clinPAL 850 - Automated Sample Handling and Preparation System
clinPAL 850 is equipped with 2 rackholders to bear up to 6 racks. It provides automated sample handling and preparation of up to 96 samples in one run, while being compact in footprint.
Order number: 810-88537-0
Order Information
Order number |
Description |
|---|---|
| 810-88538-0 | clinPAL 1200 - Automated Sample Handling and Preparation System |
| 810-88537-0 | clinPAL 850 - Automated Sample Handling and Preparation System |
Accessories
| Bottle set for clinPAL | 810-88551-0 |
| Cap for waste container for clinPAL | 810-88552-0 |
| Clips for Vacuette, 100 pcs | 810-88546-0 |
| Clips for Vacutainer, 100 pieces | 810-88547-0 |
| Container for waste for clinPAL | 810-88553-0 |
| Magnet adapter for clinPAL | 810-88550-0 |
| Rack 24 positions for for Vacutainer/Vacuette | 810-88549-0 |
| Rack 54 positions for 2 mL vials for clinPAL | 810-88548-0 |
Consumables
| 418-88247-0 | Backflush tubing assembly for clinPAL |
| 418-88246-0 | Consumables set for clinPAL 1200 |
| 418-88241-0 | Consumables set for clinPAL |
| 418-88249-0 | Dilutor transfer tubing clinPAL 1200 |
| 418-88248-0 | Dilutor transfer tubing clinPAL 850, incl. fittings |
| 418-88252-0 | Filter for waste container for clinPAL |
| 418-88250-0 | Injection port set for clinPAL |
| 418-88239-0 | Nebulizer tubing 1/16'' OD with UniFit connector (10x) |
| 418-88189-0 | Passive Bubbling Tee for ASXPRESS Plus and clinPAL |
| 418-88242-0 | Sample probe set for clinPAL |
| 418-88243-0 | Syringe for clinPAL, 5 mL |
| 418-88251-0 | Tubing for waste of clinPAL wash station |
| 418-88244-0 | Vials 2 mL with caps for clinPAL |
Downloads
| clinPAL for ICP-MS (EN) |
| clinPAL für ICP-MS (DE) |
| Technical Data clinPAL (DE) |
| Technical Data clinPAL (EN) |
