Biometra Compact Multi-Wide Powerful with Maximum Flexibility

Best solution for your needs in research and routine laboratories
Robust quality design
Efficient separation of nucleic acid fragments without loss of resolution

The Biometra Compact Multi-Wide series impresses with the combination of a stable design with a high application versatility already in a single system. It therefore belongs to the basic equipment of every laboratory with agarose gel electrophoresis applications.

Always a Suitable Solution for Your Sample Separation

The Biometra Compact Multi-Wide series combines the high quality and sophisticated, user-friendly design of the Biometra Compact family with high application versatility for medium to high sample throughput. One electrophoresis chamber size can separate nucleic acid samples in medium to high numbers, as required for the task at hand, using four different gel trays with different run lengths. The associated pouring system is equally compatible with the four different gel trays.

Four gel sizes: 15 cm x 7/10/15/18 cm
Maximum number of samples: 192
One casting system for all gel trays

Download Product Information

Brochures

Title	Language	Info
Broschüre Biometra Compact Familie (DE)	de	PDF, 1 MB
Brochure Biometra Compact Family (EN)	en	PDF, 1 MB
Br NGS Library Preparation (EN)	en	PDF, 2 MB
Brochure Product Guide Life Science (EN)	en	PDF, 2 MB
Broschüre Produktführer Life Science (DE)	de	PDF, 2 MB

High Application Variety Thanks to High System Flexibility

The Biometra Compact Multi-Wide is the most versatile member of the Compact Family and completes the electrophoresis portfolio for the identification, quantification and purification of nucleic acid fragments. Based on the Compact Family philosophy, the system offers a sophisticated chamber design , high-quality platinum electrodes and corrosion-resistant plugs for maximum reliability. With its four different gel tray lengths, it is the most variable model of the Compact Family for rapid screening as well as multiple sample loading with short or long separation distances. Depending on the size of the gel, up to 6 combs can be placed on the gel tray simultaneously, that a max. sample capacity of 192 samples could be achieved.

UV-transparent gel trays
Universal gel casting system for different gel tray length
Extensive range of accessories for maximum flexibility

The universal gel casting system is designed for gel tray lengths from 7 cm up to 18 cm. A movable fixing element provide the flexibility required to quickly and securely fix the different length gel trays for the casting of gels. With mobile gel casting dams, multiple gels can simply be poured simultaneously:

3 gel tablets of 7 cm length
2 gel trays of 10 cm length
1 gel tray of 7 cm length + 1 gel tray of 10 cm length
1 gel tray of 7 cm length + 1 gel tray of 15 cm length

Products

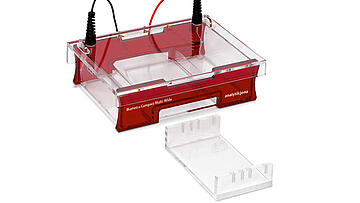

Biometra Compact Multi-Wide for gel size 15 cm x 10 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-502

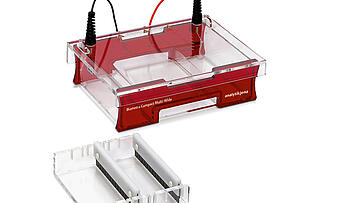

Biometra Compact Multi-Wide for gel size 15 cm x 15 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-503

Biometra Compact Multi-Wide for gel size 15 cm x 18 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-504

Biometra Compact Multi-Wide for gel size 15 cm x 7 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-501

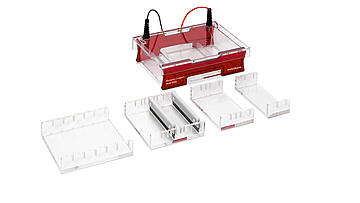

Biometra Compact Multi-Wide for gel size 15 cm x 7/10/15/18 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-509

Biometra Compact Multi-Wide System for gel size 15 cm x 10 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-592

Biometra Compact Multi-Wide System for gel size 15 cm x 15 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-593

Biometra Compact Multi-Wide System for gel size 15 cm x 18 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-594

Biometra Compact Multi-Wide system for gel size 15 cm x 7 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-591

Biometra Compact Multi-Wide System for gel size 15 cm x 7/10/15/18 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-599

Biometra Compact Multi-Wide without accessories

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-500

Technical Data

	Max. voltage	Max. power	Max. current	Gel size (W x D, cm)	Electrode distance	Leveling	Max. buffer temperature	Buffer volume	Gel casting system	Max. capacity	Dimension (width x depth x height)
Biometra Compact Multi-Wide for gel size 15 cm x 15 cm 846-025-503	180 V	20 W	250 mA	15 cm x 15 cm	25 cm	No	50 °C	1300 mL	Universal gel casting system with adjustable feet	160 Samples with 5 combs	210 mm x 295 mm x 85 mm
Biometra Compact Multi-Wide for gel size 15 cm x 18 cm 846-025-504	180 V	20 W	250 mA	15 cm x 18 cm	25 cm	No	50 °C	1300 mL	Universal gel casting system with adjustable feet	192 Samples with 6 combs	210 mm x 295 mm x 85 mm
Biometra Compact Multi-Wide for gel size 15 cm x 7 cm 846-025-501	180 V	20 W	250 mA	15 cm x 7 cm	25 cm	No	50 °C	1300 mL	Universal gel casting system with adjustable feet	192 Samples with 6 combs	210 mm x 295 mm x 85 mm
Biometra Compact Multi-Wide for gel size 15 cm x 7/10/15/18 cm 846-025-509	180 V	20 W	250 mA	15 cm x 7/10/15/18 cm	25 cm	No	50 °C	1300 mL	Universal gel casting system with adjustable feet	192 Samples with 6 combs	210 mm x 295 mm x 85 mm
Biometra Compact Multi-Wide System for gel size 15 cm x 10 cm 846-025-592	180 V	20 W	250 mA	15 cm x 10 cm	25 cm	No	50 °C	1300 mL	Universal gel casting system with adjustable feet	96 Samples with 3 combs	210 mm x 295 mm x 85 mm
Biometra Compact Multi-Wide System for gel size 15 cm x 15 cm 846-025-593	180 V	20 W	250 mA	15 cm x 15 cm	25 cm	No	50 °C	1300 mL	Universal gel casting system with adjustable feet	160 Samples with 5 combs	210 mm x 295 mm x 85 mm
Biometra Compact Multi-Wide System for gel size 15 cm x 18 cm 846-025-594	180 V	20 W	250 mA	15 cm x 18 cm	25 cm	No	50 °C	1300 mL	Universal gel casting system with adjustable feet	192 Samples with 6 combs	210 mm x 295 mm x 85 mm
Biometra Compact Multi-Wide system for gel size 15 cm x 7 cm 846-025-591	180 V	20 W	250 mA	15 cm x 7 cm	25 cm	No	50 °C	1300 mL	Universal gel casting system with adjustable feet	64 Samples with 2 combs	210 mm x 295 mm x 85 mm
Biometra Compact Multi-Wide System for gel size 15 cm x 7/10/15/18 cm 846-025-599	180 V	20 W	250 mA	15 cm x 7/10/15/18 cm	25 cm	No	50 °C	1300 mL	Universal gel casting system with adjustable feet	192 Samples with 6 combs	210 mm x 295 mm x 85 mm
Biometra Compact Multi-Wide without accessories 846-025-500	180 V	20 W	250 mA	Depends on gel tray	25 cm	No	50 °C	1300 mL	Universal gel casting system with adjustable feet	Depends on gel tray	210 mm x 295 mm x 85 mm

Order Information

Order number	Description
846-025-502	Biometra Compact Multi-Wide for gel size 10 x 15 cm
846-025-503	Biometra Compact Multi-Wide for gel size 15 x 15 cm
846-025-504	Biometra Compact Multi-Wide for gel size 15 x 18 cm
846-025-501	Biometra Compact Multi-Wide for gel size 15 cm x 7 cm
846-025-509	Biometra Compact Multi-Wide for gels size 15 cm x 7/10/15/18 cm
846-025-592	Biometra Compact Multi-Wide for gel size 15 x 10 cm, incl. gel casting system
846-025-593	Biometra Compact Multi-Wide Compact Multi-Wide System, 15 cm x 15 cm, incl. gel casting system
846-025-594	Biometra Compact Multi-Wide for gel size 15 cm x 18 cm, incl. gel casting system
846-025-591	Biometra Compact Multi-Wide for gel size 15 x 7 cm
846-025-599	Biometra Compact Multi-Wide for gel sizes 15 cm x 7/10/15/18 cm, incl. gel casting system
846-025-500	Biometra Compact Multi-Wide without accessories

Accessories

Casting / Levelling Tray for Compact Multi-Wide	846-025-550
Comb, 1.0 mm, 32 well for Compact Multi-Wide	846-025-535
Prep. comb, 1.0 mm, 2+2 well for Compact Multi-Wide	846-025-538
Comb, 1.5 mm, 16 well for Compact Multi-Wide	846-025-542
Prep. comb, 1.5 mm, 2+2 well for Compact Multi-Wide	846-025-548
Comb, 1.5 mm, 26 well for Compact Multi-Wide	846-025-544
Biometra Compact Multi-Wide for gel size 15 cm x 10 cm	846-025-502
Prep. comb, 1.5 mm, 4+2 well for Compact Multi-Wide	846-025-549
Gel tray (15 x 7) cm for Compact Multi-Wide	846-025-521
Gel tray (15 x 10) cm for Compact Multi-Wide	846-025-522
Gel tray (15 x 15) cm for Compact Multi-Wide	846-025-523
Gel tray (15 x 18) cm for Compact Multi-Wide	846-025-524
Comb, 1.0 mm, 16 well for Compact Multi-Wide	846-025-532
Comb, 1.0 mm, 22 well for Compact Multi-Wide	846-025-533
Comb, 1.0 mm, 26 well for Compact Multi-Wide	846-025-534
Comb, 1.5 mm, 14 well for Compact Multi-Wide	846-025-541
Comb, 1.5 mm, 22 well for Compact Multi-Wide	846-025-543
Comb, 1.5 mm, 32 well for Compact Multi-Wide	846-025-545
Loading strips Multi-Wide for Compact Multi-Wide	846-025-506
Movable casting dam set for Gel Casting System Compact Multi-Wide	846-025-528
Comb, 1.0 mm, 14 well for Compact Multi-Wide	846-025-531
Gel Casting System for all Biometra Compact Multi-Wide gel trays	846-025-510
