ZEEnit Series Meeting Every Demand
- Reliable trace analysis even in most difficult matrices
- Wide dynamic concentration range
- Best in class usability – no expert knowledge required
ZEEnit is the plus in your laboratory. It convinces with its cost efficiency, fast and reliable analysis and excels in the analysis of samples with high matrix.
Zeeman AAS for Demanding Samples
The ZEEnit series is designed for routine trace analysis in demanding matrices. The systems combine an outstanding graphite furnace concept with the most powerful and latest generation of Zeeman effect background correction and D2 background correction
- Variable magnetic field strength (2 -field/3-field and dynamic mode) – maximum sensitivity and expansion of the linear working range
- Included intelligence like automatic calibration and sample dilution and a wide range of accessories to maximize the productivity, safety and ease of use
- Direct analysis of solid sampling upgradable
Brochures
| Title | Language | Info |
|---|---|---|
| Produktkatalog Chemische Analyse (DE) | de | PDF, 909 KB |
| Product Guide Chemical Analysis (EN) | en | PDF, 886 KB |
| Flyer Calibration Standard Offering for TOC, AAS, and ICP Devices (EN) | en | PDF, 492 KB |
| Flyer Kalibrierstandards für TOC-, AAS- und ICP-Geräte (DE) | de | PDF, 633 KB |
| Flyer Analyse élémentaire des déchets (FR) | fr | PDF, 960 KB |
| Brochure ZEEnit Series (DE) | de | PDF, 5 MB |
| Brochure ZEEnit Series (EN) | en | PDF, 4 MB |
Proven Zeeman Technology
Atomic absorption spectrometry is a proven technique for the determination of elements in the medium to low concentration range. A special challenge is the trace analysis of toxic elements in difficult matrices. To meet this requirement, Analytik Jena offers the ZEEnit series of reliable analytical instruments with the proven Zeeman AAS technology. The Zeeman background correction used here is one of the most powerful background corrections in the field of AAS and ensures reliable results.

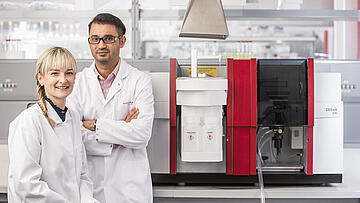

Both Zeeman AAS, the ZEEnit 650 P and the ZEEnit 700 P, are compact spectrometers equipped with a transversally-heated high-performance graphite furnace. The Zeeman magnetic field control for Zeeman background correction enables variable adjustment of the magnetic field strength up to one Tesla in various possibilities, the 2-field / 3-field and dynamic mode, thus providing maximum sensitivity and an extended working range. The systems are also equipped with a powerful deuterium background correction.
The ZEEnit 700 P has a fully automatic flame mode, which is available in a second sample compartment, thus, covering a wide concentration range. The operation of the systems is simple and user-friendly, as many processes are automated. This is implemented in a compact design by numerous integrated components, such as a carousel for 8 hollow cathode lamps, an RFID tool for the use of coded hollow cathode lamps as well as super lamps, a sampler for graphite furnace technology with automatic dilution function and a furnace vision tool. Pre-programmed methods for typical applications as well as a quick start function in the software allow a quick start for routine applications. With the combination of the unique direct AAS solid sampling and the ZEEnit graphite furnace technology, the effort for sample preparation can be minimized.
Products
ZEEnit 650P Furnace Vision - Graphite Furnace AAS with Zeeman background correction
Zeeman AAS for graphite furnace and hydride technique
Highly sensitive trace analyzer for recurring measurement tasks, equipped with a furnace camera
Order number: 813-0650P-2-K
ZEEnit 700P Furnace Vision - Flame- and Graphite Furnace AAS with Zeeman background correction
Zeeman AAS with ONE + ONE atomizer compartment for fast switching between flame and graphite furnace or hydride mode without hardware conversion for highest flexibility, additionally equipped with a furnace camera
Order number: 813-0700P-2-K
Applications
Applications
-
Spurenanalyse toxischer Elemente in Oberflächen- und Trinkwasser mit kombinierten AAS-Techniken (DE)
-
Spurenanalyse toxischer Elemente in Oberflächen- und Trinkwasser mit kombinierten AAS-Techniken (DE)
-
Normkonforme Schwermetallbestimmung in Klärschlämmen und Böden mittels AAS (DE)
-
Standardized Heavy Metal Determination in Sewage Sludges and Soils Using Aas(EN)
Applications
-
Determination of mineral contents in non-alcoholic beverages (EN)
-
Determination of toxic traces of cadmium, lead, and thallium in food (EN)
-
Quantifizierung von Eisen, Nickel, Kupfer, Arsen, Cadmium und Blei in Speiseölen mittels GF-AAS (DE)
-
Quantification of Iron, Nickel, Copper, Arsenic, Cadmium and Lead in Edible Oils Using GF-AAS (EN)
Technical Data
Detector |
Optical design |
Spectral bandwidth |
Sensitivity |
Wavelength precision |
Wavelength range |
Background correction |
Light source |
Dimension (width x depth x height) |
Space requirement (width x depth x height) |
|
|---|---|---|---|---|---|---|---|---|---|---|
|
ZEEnit 650P Furnace Vision - Graphite Furnace AAS with Zeeman background correction |
PMT | Czerny Turner Spectrometer | 0.2, 0.5, 0.8, 1.2 nm | Graphite furnace: 0.94 µg/L 1 %Abs (Pb 283) | 0.005 nm | 185-900 nm | Zeeman, Deuterium | Hollow Cathode Lamps (HCL) | 790 mm x 645 mm x 735 mm | 780 mm x 932 mm x 645 mm |
|
ZEEnit 700P Furnace Vision - Flame- and Graphite Furnace AAS with Zeeman background correction |
PMT | Czerny Turner Spectrometer | 0.2, 0.5, 0.8, 1.2 nm |
Graphite furnace: 0.94 µg/L 1 %Abs (Pb 283) Flame: 0.017 mg/l 1%Abs (Cu 324) |
0.005 nm | 185-900 nm | Zeeman, Deuterium | Hollow Cathode Lamps (HCL) | 1180 mm x 650 mm x 735 mm | 1180 mm x 735 mm x 650 mm |
For more information about our products and possible variants, please refer to the technical documents or use our contact form.
Standards
- BS EN 15488
- DIN 38405-35
- DIN 38406-32
- DIN 38406-33
- DIN 51429-1
- DIN EN 1233
- DIN EN 13131
- DIN EN 14083
- DIN EN 14109
- DIN EN 14332
- DIN EN 241
- DIN EN ISO 11212-3
- DIN EN ISO 11212-4
- DIN EN ISO 12020
- DIN EN ISO 12193
- DIN EN ISO 15586
- DIN EN ISO 5961
- DIN EN ISO 7980
- DIN EN ISO 8294
- DIN ISO 11047
- DIN ISO 16772
Order Information
Order number |
Description |
|---|---|
| 813-0650P-2-K | ZEEnit 650P Furnace Vision Graphite Furnace AAS with Zeeman background correction |
| 813-0700P-2-K | ZEEnit 700P Furnace Vision Flame and Graphite Furnace AAS with Zeeman background correction |
Accessories
| Burner head AC (100 mm) for higher sensitivity in the acetylene/ air flame | 810-60056-0 |
| Burner head NO/AC (50 mm) for acetylene/nitrous-oxide or acetylene/air flame | 810-60057-0 |
| AS-F Autosampler for flame, hydride AAS and CV-AAS/AFS | 810-60500-0 |
| AS-FD Autosampler with auto-dilution for flame, hydride AAS and CV-AAS/AFS | 810-60501-0 |
| Sample rack 139 positions for AS-F and AS-FD | 810-60503-0 |
| Sample rack 54 positions for AS-F and AS-FD | 810-60502-0 |
| AS-GF Autosampler for graphite furnace AAS | 810-60510-0 |
| Burner fork - for fast replacement of burner heads | 810-60058-0 |
| Scraper - for automatic burner head cleaning | 810-60127-0 |
| Segmented Flow Star SFS 6.0 - switching valve | 810-60129-0 |
| Hg/Hydride System HS 50 - Manual hydride system with flame heated quartz cell atomizer | 810-60149-2 |
| Air compressor, 50/60Hz, 110V - to supply AAS with water- and oil- free compressed air | 810-60276-0 |
| Air compressor, 50/60Hz, 230V - to supply AAS with water- and oil- free compressed air | 810-60055-0 |
| SSA 600 automatic solid sampler for ZEEnit-Series | 810-60275-0 |
| SSA 6z Manual solid sampler for ZEEnit - series | 810-60049-2 |
| Chiller, 50 Hz - Software-controlled cooling system | 810-60053-0 |
| Chiller, 60 Hz - Software-controlled cooling system | 810-60052-0 |
| Hg/Hydride System HS 60 - Flow injection system for Hg and hydride forming elements | 810-60402-2 |
| Bench for ICP/AAS for AAS, ICP-OES and ICP-MS instrumentation | 810-88005-0 |
| Hg/Hydrid-System HS 55 - Batch mode system for Hg and hydride forming elements | 810-60404-2 |
Software
ASpect LS
Simple, routine handling provided via a single user interface featuring great flexibility – the Aspect LS is a modern and intuitive software with fully automatic device control and extensive data evaluation function. Software functions and modules help to meet all legal requirements and standards.
- Quickstart – no expert knowledge required
- Ready-to-use worksheets for outstanding usability
- Simple methode development
- Comprehensive evaluation function
- Good laboratory practice (GLP): Control charts for statistical quality control along with notifications whenever defined limit values are exceeded – all in order to maintain comprehensive quality
- FDA 21 CFR Part 11 Compliance (optional)
| Product | Required | Included |
|---|---|---|
| ZEEnit 650P Furnace Vision - Graphite Furnace AAS with Zeeman background correction (813-0650P-2-K) | ||
| ZEEnit 700P Furnace Vision - Flame- and Graphite Furnace AAS with Zeeman background correction (813-0700P-2-K) |
FDA 21 CFR Part 11 Compliance for ASpect LS
Order number: 810-60152-0
The ASpect LS software with the FDA 21 CFR Part 11 module fully complies with FDA requirements. User rights management and individual passwords ensure that the system can only be accessed by authorized persons. All important events, such as logon/logoff, measurements, calibrations, and messages generated by the Self Check System, are recorded in the Audit Trail. Measured data can undergo routine review and approval using electronic signatures.
| Product | Required | Included |
|---|---|---|
| ZEEnit 650P Furnace Vision - Graphite Furnace AAS with Zeeman background correction (813-0650P-2-K) | ||
| ZEEnit 700P Furnace Vision - Flame- and Graphite Furnace AAS with Zeeman background correction (813-0700P-2-K) |
Consumables
| 810-60258-0 | Consumable set F for Flame technique novAA/contrAA/ZEEnit series |
| 810-60079-0 | Consumable set G Consumables for Graphite technique ZEEnit |
| 702-A63.624 | Cleaning strips for flame AAS |
| 702-A63.625 | Cleaning wires for flame AAS |
| 407-111.860 | Impact bead (standard, short) for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
| 407-111.006 | Inlet tube (PTFE), manual work for mixing chamber (black, Ryton)-nebulizer (graphite )-system (III) |
| 407-111.501 | Nebulizer for mixing chamber(black)-nebulizer-system (III) |
| 407-111.402 | Set o-rings organic samples for mixing chamber (black)-nebulizer-system (III) |
| 407-143.021 | Set sealing rings for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
| 407-111.837 | Waste tube siphon for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
| 407-152.346 | Z-graphite insert for ZEEnit |
| 407-152.314 | Z-graphite tube PIN-platform -pyrolytically coated,, long |
| 407-152.315 | Z-standard graphite tube - pyrolytically coated |
| 810-60508-0 | Consumables Set H for Hydride Systems |
| 407-1508.108 | Level sensor, organic samples for mixing chamber (black)-nebulizer-system (III) |
