multi N/C 2300 Series The Specialist
- Compact and robust
- Optimal particle handling without sample carryover
- Suitable for the smallest sample volumes (injection volumes: 10 - 500 µl)
- Easy handling and optimized processes
- New intuitive software with live results display
The specialist: A combustion device specializing in the analysis of particle-rich samples and samples that are only present in small volumes.
TOC/TNb analysis for particle-rich samples and special applications
Thanks to the use of direct injection technology, the compact and robust devices of the multi N/C 2300 series are ideal for particle-rich samples. Their modular design makes them customizable for solids as well as for the simultaneous measurement of nitrogen. The septum-free direct injection prevents sample carryover when handling particle-rich liquid samples. Injections from the microliter syringe make it possible to dose extremely small sample volumes, for example for scientific applications. When determining total protein content via total nitrogen analysis in vaccines, these devices offer impressively short measurement times, no carryover and a broad working range.
- Exceptional particle handling without any blockage or carryover along the sample path
- Analysis of undiluted samples makes laborious pre-dilution steps redundant
- New intuitive software with live result display and 21 CFR Part 11 compliant pharma module
- Reduced workload for staff thanks to the unique VITA flow management system that
- Ensures long-term stable calibrations
- Automatic acidification, purging and sample homogenization
- Five-year warranty on the wide-range focus radiation NDIR detector and the furnace technology
Brochures
| Title | Language | Info |
|---|---|---|
| Flyer Calibration Standard Offering for TOC, AAS, and ICP Devices (EN) | en | PDF, 492 KB |
| Flyer Kalibrierstandards für TOC-, AAS- und ICP-Geräte (DE) | de | PDF, 633 KB |
| Brochure multi N/C x300 Series (DE) | de | PDF, 1 MB |
| Brochure multi N/C x300 Series (EN) | en | PDF, 1 MB |
| Brochure multi N/C x300 Series (KOR) | ko | PDF, 2 MB |
| Flyer multi N/C Software (DE) | de | PDF, 259 KB |
| Flyer multi N/C Software (EN) | en | PDF, 249 KB |
| Brochure multi N/C x300 Series (FR) | fr | PDF, 6 MB |
| Flyer TOC vs. COD/BOD5 - Switch and Save (EN) | en | PDF, 1 MB |
| Flyer TOCnology made for you (EN) | en | PDF, 495 KB |
Sophisticated technologies for particle-rich samples and small sample quantities
Difficult matrices and demanding applications need a robust device. The septum-free direct injection from the microliter syringe of the multi N/C 2300 series uses efficient rinsing technology to effectively prevent blockages of the dosing path and any sample carryover even for particle-rich or emulsion-like samples.
The wide-range focus radiation NDIR detector forms the basis of this measuring technology. A broad measurement range of 0 to 30,000 mg/L TOC means that samples can be measured directly without any need for sample dilution. The Easy Cal function enables automatic calibration with long-term stability and reliable standard recovery. The VITA flow management system delivers these benefits by effectively compensating for gas flow fluctuations.
For automatic sample introduction, the autosampler AS 60 offers automatic acidification and purging, as well as magnetic stirring to homogenize liquid samples. A 112 position sample rack for 2 ml HPLC vials is optionally available.
TC and TOC in homogeneous solid samples can be measured with the double furnace module by means of catalytic oxidation at temperatures up to 950 °C in the internal furnace of the multi N/C 2300. In addition, the HT 1300 presents a solids module for catalyst-free combustion of solid samples at up to 1800 °C (with additives) in a ceramic combustion tube. Horizontal sample introduction via ceramic boats enables the direct analysis of solid samples weighing up to 3 g without needing to wrap them into foil. This solids module is part of the multi N/C 2300 duo system including automation, or can be retrofitted with manual or automatic sample introduction at any time.
To measure nitrogen, a reliable electrochemical detector (ChD) can optionally be integrated in the device. Alternatively, a chemiluminescence detector (CLD) can be added as a separate detector module - either during initial analyzer configuration or later.
Product Variants at a Glance
multi N/C 2300
This TOC/TNb analyzer is suitable for samples with a high particle or oil content in the field of environmental analysis. By dosing directly from the microliter syringe, the device offers extremely economical sample handling, making an excellent choice for research applications.
Solids analysis (optional, manual)
- Non-catalytic high-temperature combustion with HT 1300
- Acid digestion module for TIC analysis in solids
- Double furnace solids module for catalytic high-temperature combustion
Nitrogen analysis (optional)
- Simultaneous measurement of TOC and TNb
- ChD detector (integrated in the device)
- CLD-300 detector module (can be retrofitted)
Applications:
- Wastewater analysis in sewage treatment plants
- Analysis of industrial wastewater and eluates
- Analysis of small sample quantities, for example analysis of soil extracts, percolating water and ice cores for research purposes

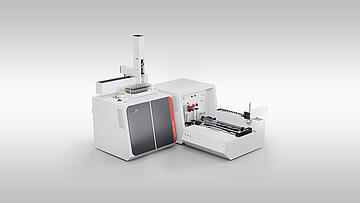

multi N/C 2300 duo
The TOC/TNb analyzer with integrated automated solids analysis is designed for water samples with a high particulate and oil content as well as for less homogeneous solid samples.
Solids analysis:
- Automated non-catalytic high-temperature combustion at up to 1800 °C (with additives) in a ceramic combustion tube
- Optional: Acid digestion module for TIC analysis in solids
Nitrogen analysis (optional)
- Simultaneous measurement of TOC and TNb
- ChD detector ( integrated in the device)
- CLD-300 detector module (can be retrofitted)
Applications
- Wastewater analysis in sewage treatment plants
- Analysis of industrial wastewater and eluates
- Analysis of small sample quantities, for example analysis of soil extracts, percolating water and ice cores for research purposes
- Analysis of soils, contaminated sites, sediment, waste, construction debris

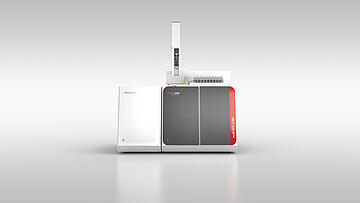

multi N/C 2300 N
Nitrogen analyzer for total protein determination using high-temperature catalytic combustion and CLD detection. This device is particularly well suited for small sample volumes and high throughput applications thanks to its high level of automation and short measuring times. The analyzer is compliant with the method of total protein determination listed in the pharmacopoeia.
Automation
- Analysis of large sample sequences with the integrated AS 60 autosampler and the 112 position rack
- Use of 2 ml HPLC vials translates to huge savings in terms of sample volume
Nitrogen analysis
- Contains CLD-300 detector module by default
Applications
- Quality control of vaccines
- TN determination in aqueous protein solutions in the pharmaceutical industry
Products
multi N/C 2300 - Direct injection TOC analyzer
Compact TOC analyzer with high-temperature combustion. Septum-free direct injection technology to enable handling of samples containing a high oil or particle content without any carryover. Also perfect for small sample quantities.
Order number: 450-500.100-2
multi N/C 2300 duo - Fully automated TOC analyzer for liquids and solids
Robust automation – for solid and liquid samples. Septum-free direct injection technology for water samples with a high oil or particle content in combination with catalyst-free combustion of solid samples in a ceramic combustion tube.
Order number: 450-500.104-2
multi N/C 2300 N - TN analyzer for aqueous protein solutions
Total protein analysis using high-temperature catalytic combustion and CLD detection. Septum-free direct injection method for results safe from any carryover. High level of automation for large sample sequences with HPLC vials.
Order number: 450-500.103-2
Applications
Applications
-
TOC/TNb-Bestimmung in Prozessabwässern der Papier-und Zellstoffindustrie (DE)
-
Nutzen der TIC-Analytik beim Lithium-Akku-Recycling zur Lithium-Rückgewinnung (DE)
-
Benefits of TIC analysis in lithium battery recycling for Lithium recovery (EN)
Applications
-
TOC/TNb Determination in Refinery Effluents (EN)
-
TOC/TNb-Bestimmung in Prozessabwässern der Papier-und Zellstoffindustrie (DE)
-
TOC/TNb Determination in Pulp and Paper Process Effluents (EN)
-
TOC-Wiederfindung in partikelhaltigen Proben mit dem Cellulose-Test nach DIN EN 1484 (DE)
-
TOC Recovery in Particle-Containing Samples with the Cellulose Test According to DIN EN 1484 (EN)
-
Nutzen der TIC-Analytik beim Lithium-Akku-Recycling zur Lithium-Rückgewinnung (DE)
-
Benefits of TIC analysis in lithium battery recycling for Lithium recovery (EN)
-
TOC/TNb-Bestimmung in Raffinerieabwässern (DE)
-
TNb-Bestimmung in Wasserproben der Umweltüberwachung gemäß DIN EN ISO 20236 (DE)
-
TNb determination in water samples for environmental monitoring in accordance with DIN EN ISO 20236 (EN)
Applications
-
TOC/TNb Determination in Refinery Effluents (EN)
-
TOC/TNb-Bestimmung in Raffinerieabwässern (DE)
Applications
-
Nutzen der TIC-Analytik beim Lithium-Akku-Recycling zur Lithium-Rückgewinnung (DE)
-
Benefits of TIC analysis in lithium battery recycling for Lithium recovery (EN)
Technical Data
Detector |
Injection Volume |
Sample Supply |
Measuring Time |
Precision |
Parameters |
Optional Parameters |
Digestion Mode |
Gas supply |
Limit of Detection |
Measurement Range |
Dimension (width x depth x height) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
multi N/C 2300 - Direct injection TOC analyzer |
Focus Radiation NDIR | 10 - 500 µL | Direct injection | 3 - 5 min | 1 - 2 % | TC, TIC, TOC, DOC, NPOC, NPOCplus | TNb (ChD/CLD) | Catalytic high temperature combustion up to 950°C | Oxygen 4.5 or synthetic air (CO2 <1 ppm, hydrocarbons <0.5 ppm) | 50 µg/L | 0 - 30000 mg/L | 513 mm x 464 mm x 550 mm |
|
multi N/C 2300 duo - Fully automated TOC analyzer for liquids and solids |
Focus Radiation NDIR | 10 - 500 µL | Direct injection | 3 - 5 min | 1 - 2 % | TC, TIC, TOC, DOC, NPOC, NPOCplus | TNb (ChD/CLD) | Catalytic high temperature combustion up to 950°C & Catalyst-free oxidation up to 1300°C |
Oxygen 4.5 or synthetic air (CO2 <1 ppm, hydrocarbons <0.5 ppm) Oxygen 2.5 |
50 µg/L | 0 - 30000 mg/L | 1865 mm x 650 mm x 970 mm |
|
multi N/C 2300 N - TN analyzer for aqueous protein solutions |
Chemiluminescence Detector (CLD) | 10 - 500 µL | Direct injection | 3 - 5 min | 1 - 2 % | TN | High temperature combustion up to 950°C | Oxygen 4.5 or synthetic air (CO2 <1 ppm, hydrocarbons <0.5 ppm) | 5 µg/L | 0 - 200 mg/L | 813 mm x 500 mm x 970 mm |
For more information about our products and possible variants, please refer to the technical documents or use our contact form.
Standards
- APHA SM 5310 A, B, C, D
- ASTM D7573
- ASTM D8083
- ASTM G144
- DIN EN 12260
- DIN EN 13137
- DIN EN 1484
- DIN EN 15936
- DIN EN ISO 20236
- EP 2.5.33, 7B
- EPA 415.1
- EPA 415.3
- EPA 9060A-1
- ISO 10694
- ISO 8245
- JP 29, 7B
- USP 1057, 7.2
Order Information
Order number |
Description |
|---|---|
| 450-500.100-2 | multi N/C 2300 - Direct injection TOC analyzer |
| 450-500.104-2 | multi N/C 2300 duo Fully automated TOC analyzer for liquids and solids |
| 450-500.103-2 | multi N/C 2300 N - TN analyzer for aqueous protein solutions |
Accessories
| AS 60 Autosampler for direct injection TOC/TNb analyzers | 450-126.682 |
| HT 1300 for multi N/C 2300 - solids combustion module for TC/TOC analysis | 450-900.128 |
| Double Furnace solids module for multi N/C 2300 | 450-900.120 |
| TIC solids module manual | 450-126.575 |
Software
multiWin pro - Operation and data evaluation software for TOC/TNb analyzers
Order number: 450-011.500
The new intuitive software multiWin pro is your user cockpit, with all vital information presented on a single screen. It monitors all key system parameters, clearly presents the measurement results and enables comfortable and targeted operation thanks to its automated, user-friendly workflows. It also offers optional data integrity functions in accordance with FDA 21 CRF Part 11.
The software includes the following features:
- Sequence table: Live results update, option to measure a single sample using different methods
- Calibration: Automatic calibration during the measurement sequence with the calibration evaluation applied to subsequent sample measurements
- Easy Cal: Multi-point calibration from a single standard, including blank correction
- Reporting: Data evaluation and generation of result reports during an ongoing sequence; user-specific choice of units
- Conversion functions: Conversion of TOC results into CSB and BSB5 equivalents, TIC values into CO2 levels, and total nitrogen results into total protein contents
- Self-diagnostics: Automatic and permanent leakage monitoring as well as monitoring of input pressure and internal device pressure, tracking of maintenance intervals, furnace and Peltier temperature, as well as detector status (self-check system)
- Data export: Automatic or manual in LIMS, CSV and PDF formats
| Product | Required | Included |
|---|---|---|
| multi N/C 2300 - Direct injection TOC analyzer (450-500.100-2) | ||
| multi N/C 2300 duo - Fully automated TOC analyzer for liquids and solids (450-500.104-2) | ||
| multi N/C 2300 N - TN analyzer for aqueous protein solutions (450-500.103-2) |
FDA 21 CFR Part 11 Compliance module for multiWin pro
Order number: 450-011.501
Software module for FDA 21 CFR Part 11 conformity and data integrity
- 21 CFR Part 11-compliant user management with user roles and assignment of individual permissions
- Electronic signatures (3-stage) for release of calibration reports, methods and analysis results
- Active Directory connection
- Audit trail with comprehensive filtering function to track changes made by users
- Configurable password rules
- IQ, OQ and PQ documentation optimized for pharmaceutical applications
- Software validation documentation and service provision by our support team, including certificate
| Product | Required | Included |
|---|---|---|
| multi N/C 2300 - Direct injection TOC analyzer (450-500.100-2) | ||
| multi N/C 2300 duo - Fully automated TOC analyzer for liquids and solids (450-500.104-2) | ||
| multi N/C 2300 N - TN analyzer for aqueous protein solutions (450-500.103-2) |
Consumables
| 899-TOCC1A | NPOC calibration kit, HTC - 0-5 mg/L C, KHP, drinking water calibration |
| 402-100.061 | Screw cap TIC-Port, GL 18, red |
| 402-810.047 | Special catalyst CeO2 for TOC/TNb determination appr. 40 g |
| 402-810.058 | Special catalyst CeO2 for TOC/TNb determination, appr. 200g |
| 899-TIC1MNS | TIC stock solution 1000 mg/L C Sodium carbonate and sodium hydrogen carbonate 50:50 Mixture |
| 899-W500A | TOC preparation water, HTC stabilized with HCl for combustion based TOC systems |
| 899-TC1MNS | TOC stock solution 1000 mg/L C Potassium hydrogenphthalate (KHP) |
| 402-825.110 | Collection tray multi N/C - diameter 100 mm, height 50 mm |
| 402-890.134 | Combustion tube, O.D. 16 mm , quartz combustion tube TOC/TNb |
| 402-890.136 | Combustion tube, O.D. 16 mm, quartz combustion tube TOC/TNb with holder |
| 402-890.219 | Combustion tube, O.D. 16 mm, quartz combustion tube TOC/TNb, set of 5 pieces |
| 402-885.010 | Combustion tube, O.D. 26 mm, quartz combustion tube TOC/TNb |
| 402-950.002 | Condensation coil multi N/C 2300 |
| 450-900.220 | Consumables kit for multi N/C 2300, 16 mm CT |
| 402-881.027 | Finger-Tight-Set 1/16" for tube set, PEEK |
| 402-825.041 | Fork clamp KS 13/2 with locking screw |
| 402-885.045 | High-temperature mat rectangular, for 16 mm combustion tube |
| 402-885.017 | High-temperature mat, round, for 26 mm combustion tube |
| 402-950.004 | IC condensing vessel for multi N/C 2300 |
| 402-823.056 | Needles, I.D. 0.35 mm for syringes |
| 402-815.102 | O-rings for combustion tube, I.D. 16 mm |
| 402-810.048 | Platinum catalyst 15 mL for TOC/TNb determination |
| 402-810.059 | Platinum catalyst 80 mL for TOC/TNb determination |
| 402-886.333 | Platinum net |
| 450-900.221 | Preventive maintenance kit for multi N/C 2300 |
| 402-885.011 | Pump hose for H3PO4 pump (peristaltic pump) |
| 402-881.006 | Quartz glass cullet, coarse grain, 80 g |
| 402-825.044 | Quartz wool |
| 402-881.238 | Septa O.D. 10 mm for pneumatic furnace head |
| 402-886.327 | Septum pre-cut (red/white) for TIC port, O.D. 17 mm, set á 5 pieces |
| 402-886.329 | Septum pre-cut for TIC port , O.D. 17 mm, set á 5 pieces |
| 402-886.311 | Syringe 500 µL, graduated, for manual injection, with removable needle |
| 402-890.110 | Tube kit for multi N/C 2300 |
| 402-815.076 | Waste container 5 L |
| 402-007.884 | FAST connector , straight |
| 402-007.508 | FAST connector , straight |
| 402-007.988 | FAST connector straight |
| 402-007.513 | FAST connector, angled |
| 402-810.050 | Halogen absorber filling for halogen absorber U-tube, I.D. 11 mm |
| 402-810.083 | Halogen absorber filling, 11mm 5 refills of the halogen absorber U-tube, I.D. 11 mm |
| 402-884.005 | Pump hose for waste pump (peristaltic pump) |
| 402-889.674 | Quartz sample boats 40 x 9 mm |
| 402-889.673 | Quartz sample boats with downholder 40 x 9 mm |
| 402-825.097 | Reagent bottle, 250 ml for phosphoric acid |
| 402-820.076 | Screw cap GL 45 with 3 holes for needles / tubings (for Schott bottle) |
| 402-950.005 | Set of FAST-Connectors , 8 pcs. |
| 402-881.245 | Set of TC prefilter and water trap |
| 450-900.229 | Starter kit for 26 mm CT with CeO2 catalyst |
| 402-886.141 | Two-part ceramic hook long, 600 mm |
| 402-950.001 | U-tube halogen absorber O.D. 11 mm |
| 402-884.021 | Waste hose TOC with screw joint for basic unit (2 m) |
| 899-BSASET1 | BSA calibration kit standard solutions 1 - 15 mg/L N incl. blank solution |
| 899-BSASS2 | BSA stock solution 200 mg/L N, Protein standard for total nitrogen calibration |
| 402-886.131 | Calcium carbonate TC/TIC standard |
| 402-886.116 | Drying agent for HT furnace |
Related Products
TOC Autosampler Series
Streamline your sample throughput by means of our wide portfolio of cost-effective and application optimized autosamplers.
multi X 2500
multi X 2500 – an AOX analyzer that is setting standards – flexible, reliable, easy to operate, and capable of much more than just AOX/EOX/POX sum parameter analysis
Downloads
The newsletter of Analytik Jena frequently keeps you posted about:
- News
- Trends and developments
- Events
