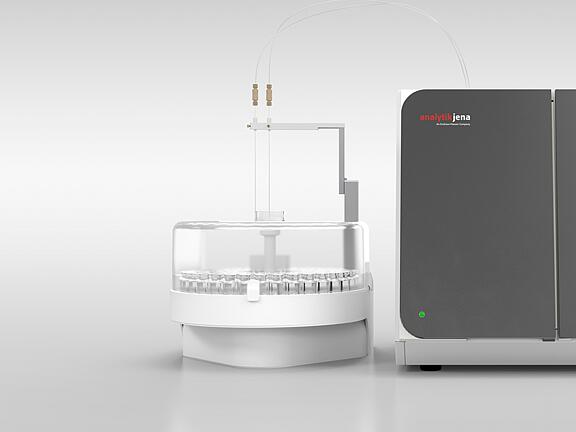

multi N/C 3300 Series The Allrounder
- Precise measurement of high and low TOC contents
- High robustness even for samples containing particles
- Optimized for high throughput analysis
- Versatile configuration and automation options
- New intuitive software with live results display
The allrounder: Particle-rich, salt-containing, or very pure samples? This combustion analyzer is optimized for high throughput and offers the perfect balance between samples of all kinds.
TOC/TNb analysis for samples with complex matrices and particle contents
The versatile devices of the multi N/C 3300 series are suited for a wide spectrum of applications such as particle-rich surface water or wastewater, as well as drinking water or ultrapure water. Equipped with special loop injection technology, these devices offer especially high reproducibility for samples containing particles. Thanks to the high injection volumes (1000 - 3000 µL), they also offer exceptional sensitivity.
Detector modules for simultaneous TNb determination and accessories for analysis of solids can be pre-configured or retrofitted. The N/C 3300 HS provides even higher reproducibility and sensitivity in the trace range, for example, when analyzing pharmaceutical ultrapure water. An optional solids module can be added for direct swab combustion in the context of TOC cleaning validation.
- Complete dosing of particulate samples without carryover thanks to loop injection technology with reverse rinse function
- Measurement of undiluted samples using the wide-range focus radiation NDIR detector
- Automatic acidification and purging as well as sample homogenization
- High NPOC sample throughput by parallel purging and measurement
- New intuitive software with live result display and 21 CFR Part 11 compliant pharma module
- Significant time savings as a result of long-term stable calibrations
- External needle rinsing for even better repeatability and carry-over control
- Optional kit to measure high-salt samples with salt trap in the combustion tube and extended maintenance intervals
- Five-year warranty for the focus radiation NDIR detector and furnace technology
Brochures
| Title | Language | Info |
|---|---|---|
| Brochure multi N/C x300 Series (DE) | de | PDF, 1 MB |
| Brochure multi N/C x300 Series (EN) | en | PDF, 1 MB |
| Brochure multi N/C x300 Series (KOR) | ko | PDF, 2 MB |
| Flyer multi N/C Software (DE) | de | PDF, 256 KB |
| Flyer Chemical Recycling of Plastics: Analytical Solutions for Crucial Quality Gates (EN) | en | PDF, 301 KB |
| Brochure multi N/C x300 Series (FR) | fr | PDF, 6 MB |
Optimally equipped for a multitude of sample matrices
A wide range of applications, varying particle concentrations and high throughput require powerful technologies. Loop injection with intelligent rinsing technology achieves a detection limit of 4 µg/L C, while avoiding sample carryover when handling particle-rich samples. The flow injection from the syringe pump in the multi N/C 3300 HS makes the device ideal for the pharmaceutical analysis of ultrapure water.
The wide-range focus radiation NDIR detector with a measurement range of 0 to 30,000 mg/L TOC enables the measurement of undiluted samples as well as the precise detection of low TOC contents.
The Easy Cal function enables automatic calibration with long-term stability and standard recovery. The underlying VITA flow management system delivers these benefits by effectively compensating for carrier gas fluctuations. Not only does this mean that calibration is only required once a year, it also greatly simplifies the commonly requested equidistant 10-point calibration.
Our automation solutions make sample preparation and analysis more efficient and can be tailored to the needs of our customers. An extensive portfolio of autosamplers enables automatic acidification with parallel purging, magnetic stirring to homogenize samples, external needle rinsing to prevent carryover when handling particle-rich samples, and the processing of polymer septa for TOC analysis in ultrapure water.
TOC solids measurement can be included in the device configuration of a duo system, including automation, or without automation as an additional module. The HT 1300 is available as a solids module for the non-catalytic combustion of solid samples at up to 1800 °C (with additives) in a ceramic combustion tube. Horizontal sample introduction via ceramic boats enables the direct analysis of solid samples weighing up to 3 g without needing to wrap them into foil. Likewise, manual TIC analysis using direct acid digestion is also possible by adding a TIC module.
Upon request, a reliable electrochemical detector (ChD) can be integrated in the device for nitrogen determination. Alternatively, a chemiluminescence detector (CLD) can be added as a separate detector module - either during initial analyzer configuration or later.
Product Variants at a Glance

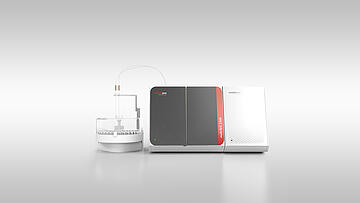

multi N/C 3300
Its high level of sensitivity, combined with a broad working range, makes this TOC/TNb analyzer a multi-talented device for high throughput laboratories. The device is suited to analyze both high-matrix samples and ultrapure water. Robust loop injection technology with reverse rinse and parallel purging enables rapid operation in NPOC mode.
Solids analysis (optional, manual)
- Non-catalytic high-temperature combustion with HT 1300
- Acid digestion module for TIC analysis in solids
Nitrogen analysis (optional)
- Simultaneous measurement of TOC and TNb
- ChD detector (integrated in the device)
- CLD-300 detector module (can be retrofitted)
Applications
- Surface water monitoring
- Wastewater and eluate analysis
- Analysis of groundwater, raw water and drinking water
- TOC cleaning validation in pharma industry
multi N/C 3300 duo
The highly sensitive TOC/TNb analyzer with its integrated automated solids analysis function is ideal for contract laboratories that handle a wide range of sample types. High sensitivity across a broad working range makes it suitable for both high-matrix and pure water samples, as well as for less homogeneous solid samples. Robust loop injection technology with reverse rinse and parallel purging enables rapid operation in NPOC mode.
Solids analysis
- Automated non-catalytic high-temperature combustion at up to 1800 °C (with additives) in a ceramic combustion tube
- Optional: Acid digestion module for TIC analysis in solids
Nitrogen analysis (optional)
- Simultaneous measurement of TOC and TNb
- ChD detector (integrated in the device)
Applications:
- Surface water monitoring
- Wastewater and eluate analysis
- Analysis of groundwater, raw water and drinking water
- Analysis of soils, contaminated sites, sediment, waste, construction debris
multi N/C 3300 HS
The TOC analyzer for applications at the ultra-trace level. By dosing directly from the syringe pump, the device can utilize high sample volumes of up to 3 mL, thereby achieving the highest sensitivity and repeatability when analyzing the lowest concentrations of TOC and TN.
Solids analysis (optional)
- Catalytic high-temperature combustion of quartz fiber swabs with the swab test module
Nitrogen analysis (optional, can be retrofitted)
- CLD-300 detector module
Applications:
- TOC and TN trace analysis
- Ultrapure water analysis (water for injection - WFI) in pharma industry
- Cleaning validation (last rinse, swab extraction and direct swab combustion)
- Analysis of boiler feed water and condensates in power plants
Products
multi N/C 3300 - Flow injection TOC analyzer
The multi-talented device for high throughput laboratories. Robust loop injection technology with reverse rinse and parallel purging for rapid operation in NPOC mode. Also suitable for pharmaceutical applications such as TOC cleaning validation.
Order number: 450-500.500-2
multi N/C 3300 duo - Fully automated TOC analyzer for liquids and solids
The fast all-rounder for liquid and solid samples. Combination of flow injection with intelligent rinsing and injection technology for particulate water samples with catalyst-free sample oxidation in a ceramic combustion tube for solids.
Order number: 450-500.504-2
multi N/C 3300 HS - TOC/TN analyzer for pharmaceutical applications
Highly sensitive TOC/TN trace analysis with high-temperature catalytic combustion. Extremely precise in the ultra-trace range thanks to high injection volumes. Module for direct swab combustion is available for TOC cleaning validation.
Order number: 450-500.600-2
Applications
Applications
-
Determination of Organic Impurities (TOC) In Raw Materials for Cathode Production in Lithium-Ion Batteries (EN)
-
Bestimmung organischer Verunreinigungen (TOC) in Rohstoffen für die Kathodenherstellung für Lithium-Ionen Batterien (LIB) (DE)
-
Nutzen der TIC-Analytik beim Lithium-Akku-Recycling zur Lithium-Rückgewinnung (DE)
-
Benefits of TIC analysis in lithium battery recycling for Lithium recovery (EN)
-
原油の脱塩工程に伴うブラインサンプルのTOC測定 (JP)
-
DIN EN ISO 20236に準拠した海水中のTOC測定 (JP)
-
TOC Determination in Brine Samples coming from Desalting Process (EN)
-
TOC-Bestimmung in Sole-Proben aus der Erdöl-Entsalzung (DE)
Applications
-
TOC Determination in Raw and Drinking Water (EN)
-
TOC-Wiederfindung in partikelhaltigen Proben mit dem Cellulose-Test nach DIN EN 1484 (DE)
-
TOC Recovery in Particle-Containing Samples with the Cellulose Test According to DIN EN 1484 (EN)
-
Determination of TOC/TNb and DOC/DNb in Surface Water According to ISO 20236 (EN)
-
Waste Characterization for Landfill Classification - Determination of TOC/DOC According to DIN EN 1484 in Waste Eluates and Landfill Leachates (EN)
-
Charakterisierung von Abfällen zur Deponieklassenzuordnung – Bestimmung des TOC/DOC nach DIN EN 1484 in Abfall-Eluaten und Deponiesickerwasser (DE)
-
Nutzen der TIC-Analytik beim Lithium-Akku-Recycling zur Lithium-Rückgewinnung (DE)
-
Benefits of TIC analysis in lithium battery recycling for Lithium recovery (EN)
-
TOC-Bestimmung in Meerwasser nach DIN EN ISO 20236 (DE)
-
TOC Determination in Sea Water in Accordance with DIN EN ISO 20236 (EN)
-
TNb-Bestimmung in Wasserproben der Umweltüberwachung gemäß DIN EN ISO 20236 (DE)
-
TNb determination in water samples for environmental monitoring in accordance with DIN EN ISO 20236 (EN)
-
原油の脱塩工程に伴うブラインサンプルのTOC測定 (JP)
-
DIN EN ISO 20236に準拠した海水中のTOC測定 (JP)
-
Bestimmung des TOC/TNb und des DOC/DNb in Oberflächenwässern nach ISO 20236 (DE)
Applications
-
TOC Determination in Raw and Drinking Water (EN)
-
TOC Determination in Brine Samples coming from Desalting Process (EN)
-
TOC-Bestimmung in Sole-Proben aus der Erdöl-Entsalzung (DE)
Applications
-
TOC Determination in Brine Samples coming from Desalting Process (EN)
-
TOC-Bestimmung in Sole-Proben aus der Erdöl-Entsalzung (DE)
Applications
-
Determination of Organic Impurities (TOC) In Raw Materials for Cathode Production in Lithium-Ion Batteries (EN)
-
Bestimmung organischer Verunreinigungen (TOC) in Rohstoffen für die Kathodenherstellung für Lithium-Ionen Batterien (LIB) (DE)
-
Nutzen der TIC-Analytik beim Lithium-Akku-Recycling zur Lithium-Rückgewinnung (DE)
-
Benefits of TIC analysis in lithium battery recycling for Lithium recovery (EN)
Technical Data
Detector |
Injection Volume |
Limit of Detection |
Gas supply |
Digestion Mode |
Optional Parameters |
Parameters |
Precision |
Measuring Time |
Sample Supply |
Measurement Range |
Dimension (width x depth x height) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
multi N/C 3300 - Flow injection TOC analyzer |
Focus Radiation NDIR | 100 - 1000 µL | 4 µg/L | Oxygen 4.5 or synthetic air (CO2 <1 ppm, hydrocarbons <0.5 ppm) | Catalytic high temperature combustion up to 950°C | TNb (ChD/CLD), POC (direct measurement) | TC, TIC, TOC, DOC, NPOC, NPOCplus | 1 - 2 % | 3 - 5 min | Flow injection | 0 - 30000 mg/L | 513 mm x 547 mm x 464 mm |
|
multi N/C 3300 duo - Fully automated TOC analyzer for liquids and solids |
Focus Radiation NDIR | 100 - 1000 µL | 4 µg/L |
Oxygen 4.5 or synthetic air (CO2 <1 ppm, hydrocarbons <0.5 ppm) Oxygen 2.5 |
Catalytic high temperature combustion up to 950°C & Catalyst-free oxidation up to 1300°C | TNb (ChD/CLD), POC (direct measurement) | TC, TIC, TOC, DOC, NPOC, NPOCplus | 1 - 2 % | 3 - 5 min | Flow injection | 0 - 30000 mg/L | 2215 mm x 650 mm x 464 mm |
|
multi N/C 3300 HS - TOC/TN analyzer for pharmaceutical applications |
Focus Radiation NDIR | 50 - 3000 µL | 4 µg/L | Oxygen 4.5 or synthetic air (CO2 <1 ppm, hydrocarbons <0.5 ppm) | High temperature combustion up to 950°C | TN (CLD) | TC, TIC, TOC, DOC, NPOC, NPOCplus | 1 - 2 % | 3 - 5 min | Flow injection | 0 - 30000 mg/L | 513 mm x 547 mm x 464 mm |
For more information about our products and possible variants, please refer to the technical documents or use our contact form.
Standards
- APHA SM 5310 A, B, C, D
- ASTM D7573
- ASTM D8083
- ASTM G144
- DIN 38409-46
- DIN EN 12260
- DIN EN 13137
- DIN EN 1484
- DIN EN 15936
- DIN EN ISO 20236
- EP 2.2.44
- EP 2.5.33, 7B
- EPA 415.1
- EPA 415.3
- EPA 9060A-1
- Ersatzbaustoffverordnung (EBV)
- ISO 8245
- JP 2.59
- JP 29, 7B
- USP 1057, 7.2
- USP 643
- USP 661.1
- USP 661.2
Order Information
Order number |
Description |
|---|---|
| 450-500.500-2 | multi N/C 3300 Flow injection TOC analyzer |
| 450-500.504-2 | multi N/C 3300 duo - Fully automated TOC analyzer for liquids and solids |
| 450-500.600-2 | multi N/C 3300 HS - TOC/TN analyzer for pharmaceutical applications |
"As a waste disposal company, we have been using a multi N/C for DOC analysis in eluates and wastewater samples for more than seven years. The parameter with associated values is part of the German landfill ordinance for waste analysis. We were convinced by the measuring accuracy of the instruments, but above all by the excellent application consulting during the purchase and the very reliable technical support and service. With Analytik Jena, we have a partner we can rely on."
Holger Karge, IAG lhlenberger Abfallentsorgungsgesellschaft mbH, Germany
"The instrument is ideally suited for the analysis of all types of water – from ultrapure and drinking water to industrial waste water. It is robust and a real lab routine mainstay. The short reaction times and the excellent cooperation with regular representatives are not only of assistance to my laboratory, but to me personally as well."
Dr. Ralph Zimmer, Lead Analytical Manager, Dow
“The equipment can be very easily maintained, and maintenance costs can be kept to a minimum. Through the automatic acidification function, 40 or more samples can be acidified at once to perform analysis using the NPOC method.“
Da-Ae Choi, Senior Researcher at Seongnam Water Quality Restoration Center, Korea
Accessories
| AS vario Autosampler for flow injection TOC/TNb analyzers | 450-900.140 |
| Sample rack 72 pos. Accessory for AS vario ER | 450-900.141-ER |
| AS vario ER with ext. needle cleaning for multi N/C 3300 and multi N/C 4300 UV | 450-900.148 |
| Sample rack 47 pos. Accessory for AS vario ER for automatic dilution | 450-900.145-ER |
| Sample rack 100 pos. Accessory for AS vario ER | 450-900.146-ER |
| AS 21hp Autosampler for flow injection TOC/TNb analyzers | 450-900.106 |
| Sample rack 146 pos. Accessory for AS vario ER | 450-900.143-ER |
| Protective cover for AS vario and AS vario ER | 450-900.147 |
| AS 10e Autosampler for flow injection TOC/TNb analyzers | 450-900.111 |
| EPA Sampler with piercing function for flow injection TOC/TNb analyzers | 450-126.693 |
| Swab Test Module for multi N/C 3300 HS | 450-900.121 |
| HT 1300 for multi NC 3300 - solids combustion module for TC/TOC analysis | 450-900.129 |
| Salt kit for multi N/C 3300 | 450-500.550 |
| POC module "basic" for multi N/C 3300 series | 450-126.621 |
| TIC solids module manual | 450-126.575 |
Software
multiWin pro - Operation and data evaluation software for TOC/TNb analyzers
Order number: 450-011.500
The new intuitive software multiWin pro is your user cockpit, with all vital information presented on a single screen. It monitors all key system parameters, clearly presents the measurement results and enables comfortable and targeted operation thanks to its automated, user-friendly workflows. It also offers optional data integrity functions in accordance with FDA 21 CRF Part 11.
The software includes the following features:
- Sequence table: Live results update, option to measure a single sample using different methods
- Calibration: Automatic calibration during the measurement sequence with the calibration evaluation applied to subsequent sample measurements
- Easy Cal: Multi-point calibration from a single standard, including blank correction
- Reporting: Data evaluation and generation of result reports during an ongoing sequence; user-specific choice of units
- Conversion functions: Conversion of TOC results into CSB and BSB5 equivalents, TIC values into CO2 levels, and total nitrogen results into total protein contents
- Self-diagnostics: Automatic and permanent leakage monitoring as well as monitoring of input pressure and internal device pressure, tracking of maintenance intervals, furnace and Peltier temperature, as well as detector status (self-check system)
- Data export: Automatic or manual in LIMS, CSV and PDF formats
| Product | Required | Included |
|---|---|---|
| multi N/C 3300 - Flow injection TOC analyzer (450-500.500-2) | ||
| multi N/C 3300 duo - Fully automated TOC analyzer for liquids and solids (450-500.504-2) | ||
| multi N/C 3300 HS - TOC/TN analyzer for pharmaceutical applications (450-500.600-2) |
Consumables
| 402-890.219 | Combustion tube, O.D. 16 mm, quartz combustion tube TOC/TNb, set of 5 pieces |
| 402-885.010 | Combustion tube, O.D. 26 mm, quartz combustion tube TOC/TNb |
| 402-950.009 | Condensation coil for multi N/C 3300 |
| 450-900.222 | Consumables kit for multi N/C 3300, 16 mm CT |
| 402-885.017 | High-temperature mat, round, for 26 mm combustion tube |
| 402-890.196 | Hose number AA for multi N/C 3300 |
| 899-TOCC1A | NPOC calibration kit, HTC - 0-5 mg/L C, KHP, drinking water calibration |
| 402-810.059 | Platinum catalyst 80 mL for TOC/TNb determination |
| 450-900.223 | Preventive maintenance kit for multi N/C 3300 |
| 402-881.006 | Quartz glass cullet, coarse grain, 80 g |
| 402-883.005 | Sample aspiration tube |
| 402-885.016 | Sample aspiration tube with screw joint |
| 402-825.086 | Screw cap bottle 2.5 L for ultra-pure rinse water supply |
| 402-810.047 | Special catalyst CeO2 for TOC/TNb determination appr. 40 g |
| 402-810.058 | Special catalyst CeO2 for TOC/TNb determination, appr. 200g |
| 899-TIC1MNS | TIC stock solution 1000 mg/L C Sodium carbonate and sodium hydrogen carbonate 50:50 Mixture |
| 899-TC1MNS | TOC stock solution 1000 mg/L C Potassium hydrogenphthalate (KHP) |
| 402-890.193 | Tube kit for multi N/C 3300 |
| 402-889.050 | Septa 12.5 mm |
| 402-815.058 | Lab-type screw joint GL 14, complete |
| 402-820.110 | FEP tubing |
| 402-890.178 | Piercing needle for sample aspiration and purge tube for EPA sampler |
| 402-881.203 | Glass tube with thread straight, without connectors |
| 402-825.110 | Collection tray multi N/C - diameter 100 mm, height 50 mm |
| 402-890.134 | Combustion tube, O.D. 16 mm , quartz combustion tube TOC/TNb |
| 402-890.136 | Combustion tube, O.D. 16 mm, quartz combustion tube TOC/TNb with holder |
| 402-950.017 | Connector IC vessel - TC prefilter |
| 402-881.027 | Finger-Tight-Set 1/16" for tube set, PEEK |
| 402-881.026 | Finger-Tight-Set 1/8" for tube set, PEEK |
| 402-825.041 | Fork clamp KS 13/2 with locking screw |
| 402-885.045 | High-temperature mat rectangular, for 16 mm combustion tube |
| 402-950.010 | IC/Condensation vessel for multi NC 3300 series |
| 402-884.019 | Injection tube for furnace head, pre-assembled |
| 402-815.102 | O-rings for combustion tube, I.D. 16 mm |
| 402-810.048 | Platinum catalyst 15 mL for TOC/TNb determination |
| 402-886.333 | Platinum net |
| 402-885.011 | Pump hose for H3PO4 pump (perestaltic pump) |
| 402-825.044 | Quartz wool |
| 402-823.110 | Syringe for dosing pump, 5 mL |
| 899-W500A | TOC preparation water, HTC stabilized with HCl for combustion based TOC systems |
| 402-815.076 | Waste container 5 L |
| 402-007.884 | FAST connector , straight |
| 402-007.508 | FAST connector , straight |
| 402-007.988 | FAST connector straight |
| 402-007.513 | FAST connector, angled |
| 402-810.050 | Halogen absorber filling for halogen absorber U-tube, I.D. 11 mm |
| 402-810.083 | Halogen absorber filling, 11mm 5 refills of the halogen absorber U-tube, I.D. 11 mm |
| 899-00050-0 | Low TOC Alpha Sampling Swabs |
| 402-007.450 | POC reactor vessel for POC module "basic" |
| 402-825.097 | Reagent bottle, 250 ml for phosphoric acid |
| 402-825.095 | Schott bottle 100 mL with screw cap |
| 402-950.005 | Set of FAST-Connectors , 8 pcs. |
| 402-881.245 | Set of TC prefilter and water trap |
| 402-950.001 | U-tube halogen absorber O.D. 11 mm |
| 402-890.217 | Certified TOC reactor, 16 mm for pharma applications |
| 402-950.011 | Condensation coil for multi N/C 3300 HS |
| 450-900.226 | Consumables kit for multi N/C 3300 HS, 16 mm CT |
| 899-JPPT1A | JP SST kit, HTC JP performance test kit stabilized with HCl |
| 899-LIN1A | Linearity test kit, HTC, 0.5 mg/L C sucrose for combustion based TOC systems |
| 450-900.227 | Preventive maintenance kit for multi N/C 3300 HS |
| 402-889.674 | Quartz sample boats 40 x 9 mm |
| 402-889.673 | Quartz sample boats with downholder 40 x 9 mm |
| 402-884.007 | Sample purge tube |
| 402-884.026 | Sample purge tube with screw joint |
| 899-00049-0 | Sample vials 40 mL , clear, TOC<10ppb for EPA sampler |
| 899-TN1MNS | TNb stock solution 1000 mg/L N Potassium nitrate and ammonium sulfate 50:50 Mixture |
| 899-TOCC3A | TOC calibration kit 0.6 mg/L C - HTC, sucrose solution stabilized with HCl |
| 899-TOCBNS | TOC stock solution para-benzoquinone USP, 100 mg/L C |
| 899-TOCSNS | TOC stock solution sucrose USP, 100 mg/L C |
| 402-890.204 | Tube kit for multi N/C 3300 HS |
| 899-USPS2A | USP TOC SST kit, HTC, SST test kit stabilized with HCl for combustion based TOC systems |
Related Products
TOC Autosampler Series
Streamline your sample throughput by means of our wide portfolio of cost-effective and application optimized autosamplers.
multi X 2500
multi X 2500 – an AOX analyzer that is setting standards – flexible, reliable, easy to operate, and capable of much more than just AOX/EOX/POX sum parameter analysis
Downloads
The newsletter of Analytik Jena frequently keeps you posted about:
- News
- Trends and developments
- Events
